Router Jigs

Two DIY router jigs are used

  • The first one is a simple Rabbet Router Jig - from 10 mm to 20 mm.
  • The second one is a complex jig designed by Samuel Mamias to make box joint, dovetail joint, Mortise and Tenon, Open slot mortise, etc…

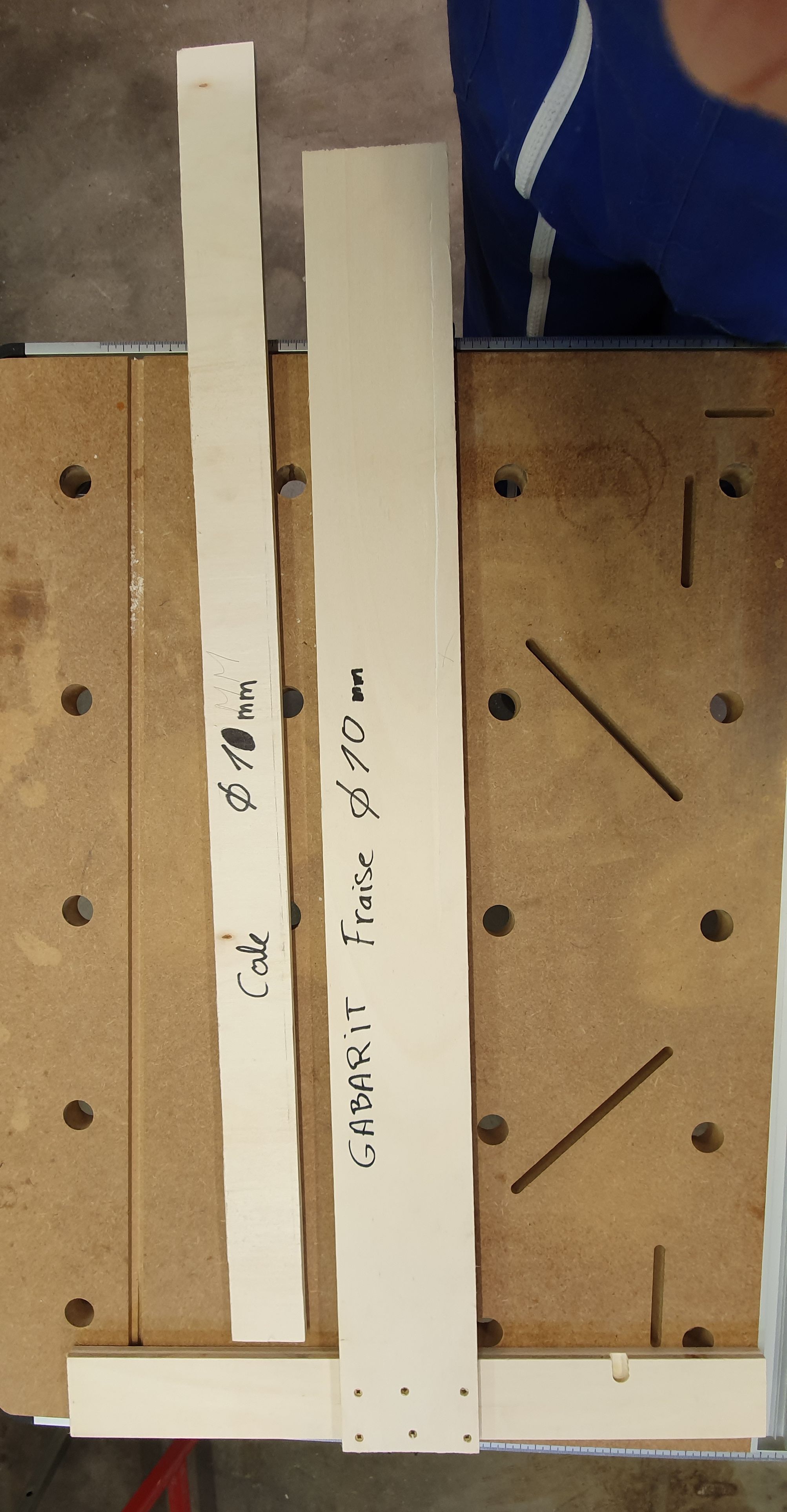

Rabbet Router Jig

In the complex router jig, To make different types of joints, you have to change the jigs on the second picture.

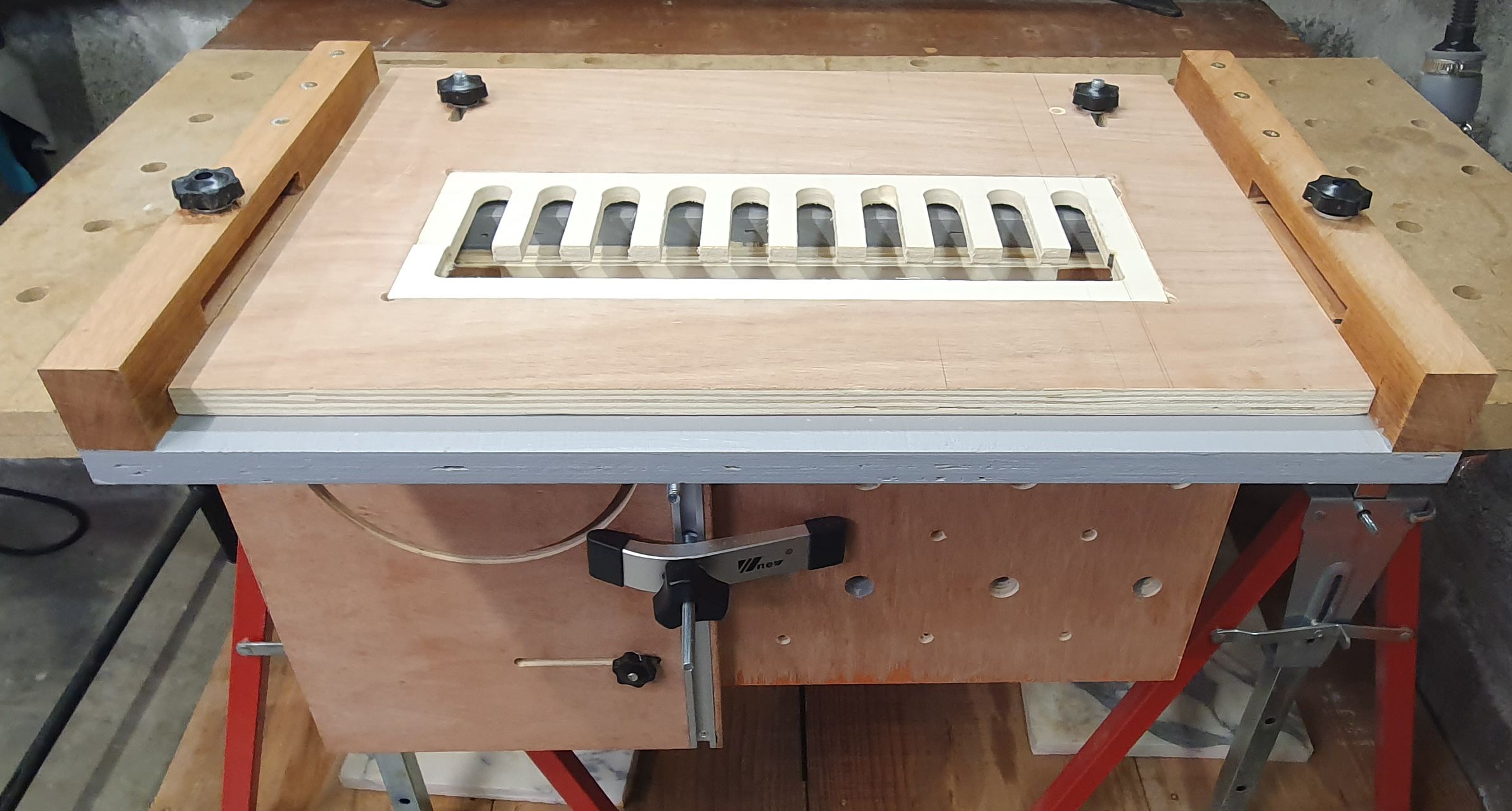

Complex router Jigs
image image
