Four different jigs, three from Trend Tool Technology and the fourth one from CMT Tools

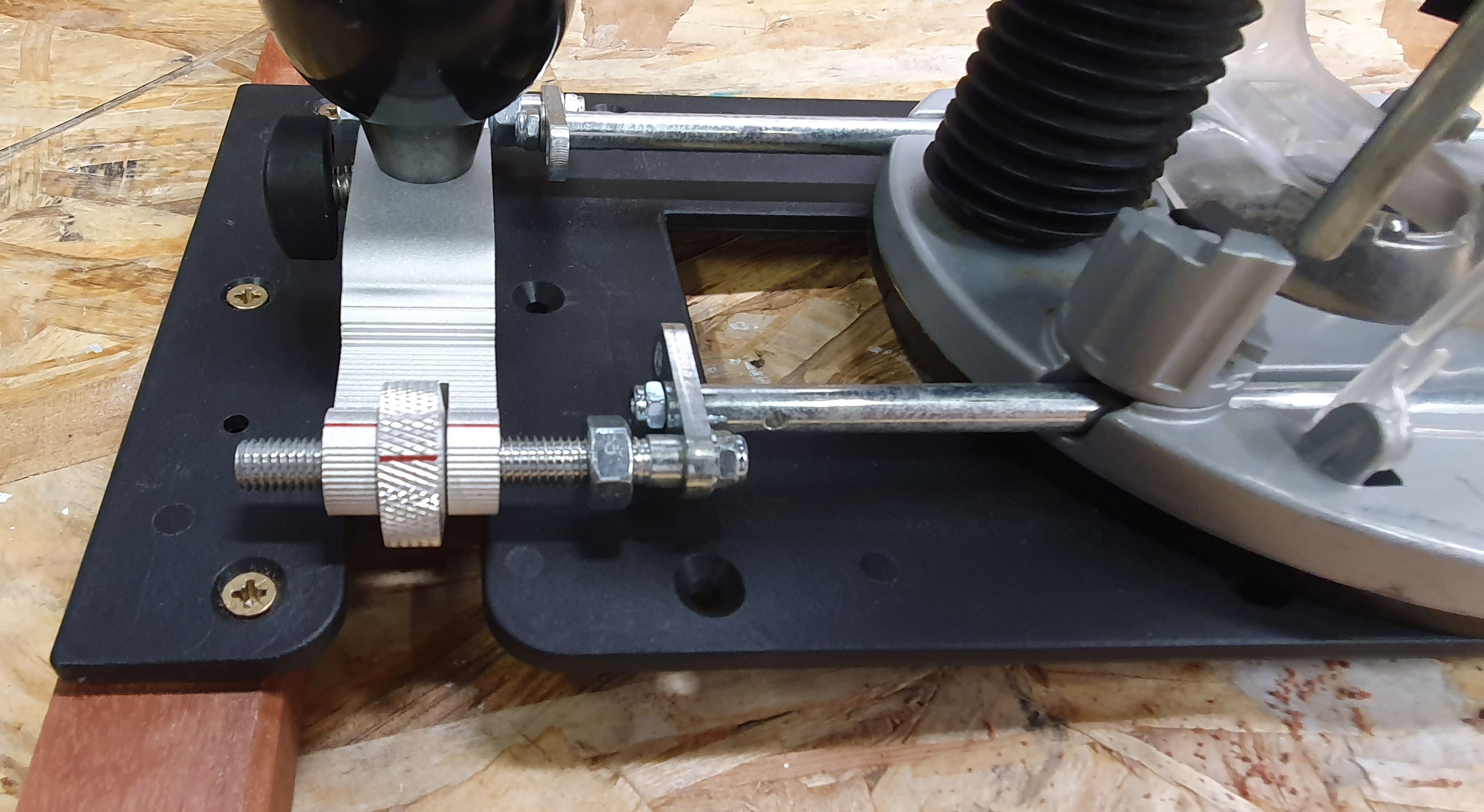

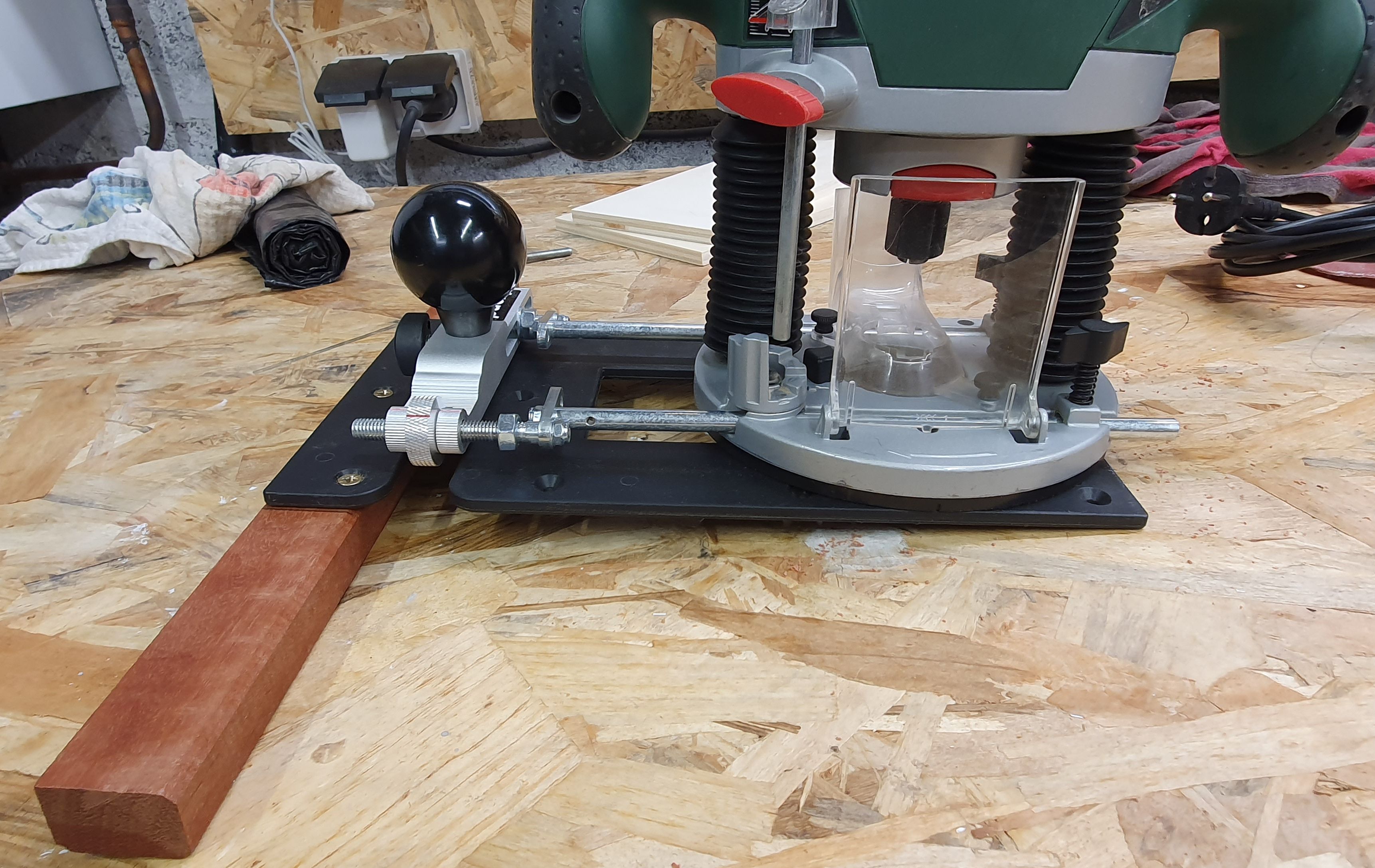

The first one is the Combination Router Base. It is a retro fit, quick change, multi-functional router base designed to:
Increase stability during routing.
Increase the level of precision achieved.
Save set up time between tasks.
The CRB has seven functions
An offset baseplate,
Router compass from 19mm to 224mm radius,
Adjustable trenching with a clamp guide with 40mm micro adjustment,
Adjustable anti-tilt support,
Adjustable mortising of timber from 50mm to 200mm width,
Adjustable false panel groove copier and also enhances the Varijig frame system as an anti-tilt device when used with routers that can accept Euro style guide bushes (a special guide bush ref GB40/B is required).
Combination Router Base

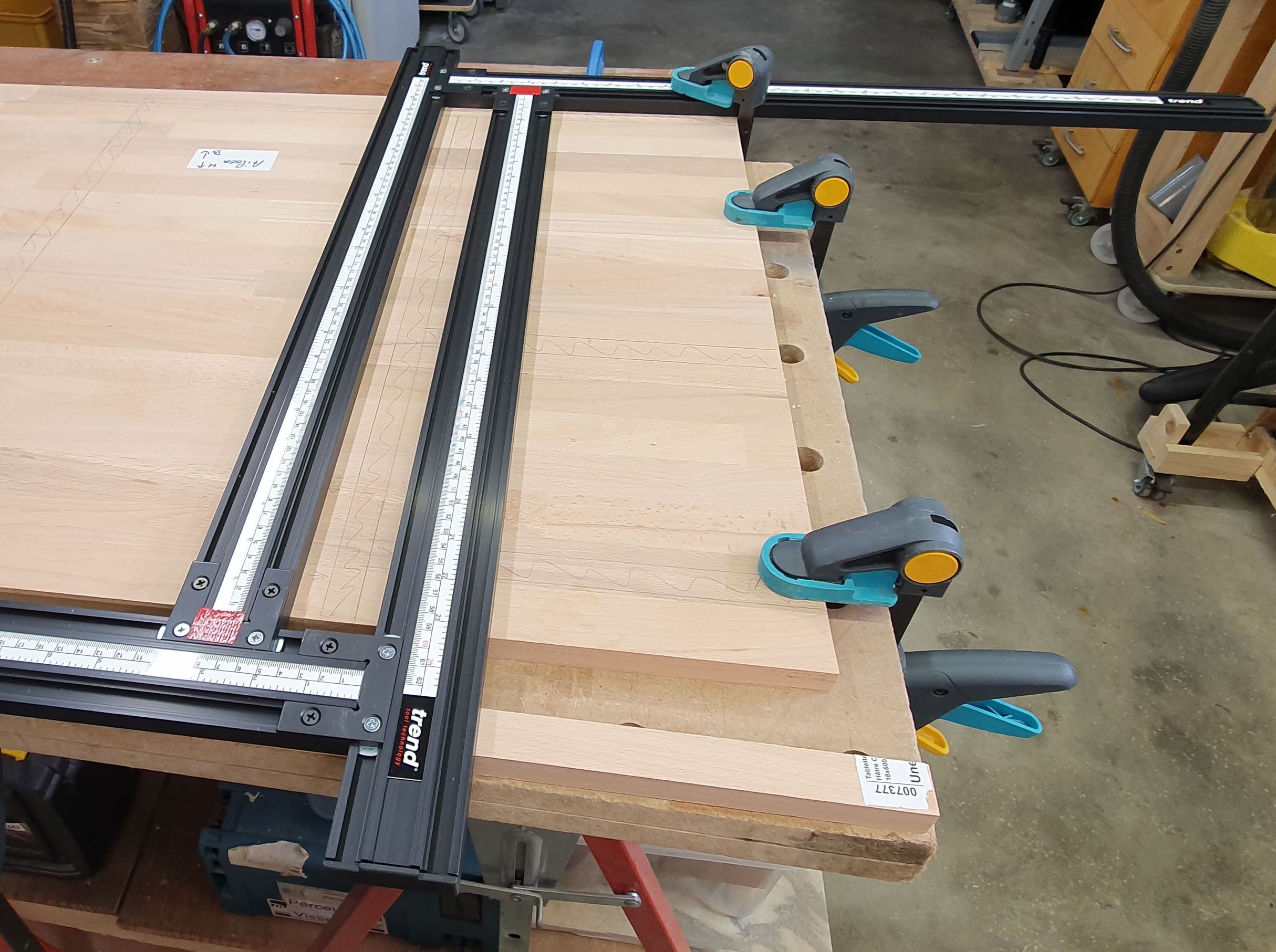

The second one is the Varijig system. It is an adjustable frame and guide for use with a router. It is composed of four lengths of 700mm extrusion with dual metric/imperial measuring scales - a working area 600mm x 600mm.
Adjustable frame for rectangles and squares.
Allows a router to cut recesses, slots, face panel moulds etc.
Can also be used to create panel doors for kitchens etc.
Trend VariJig

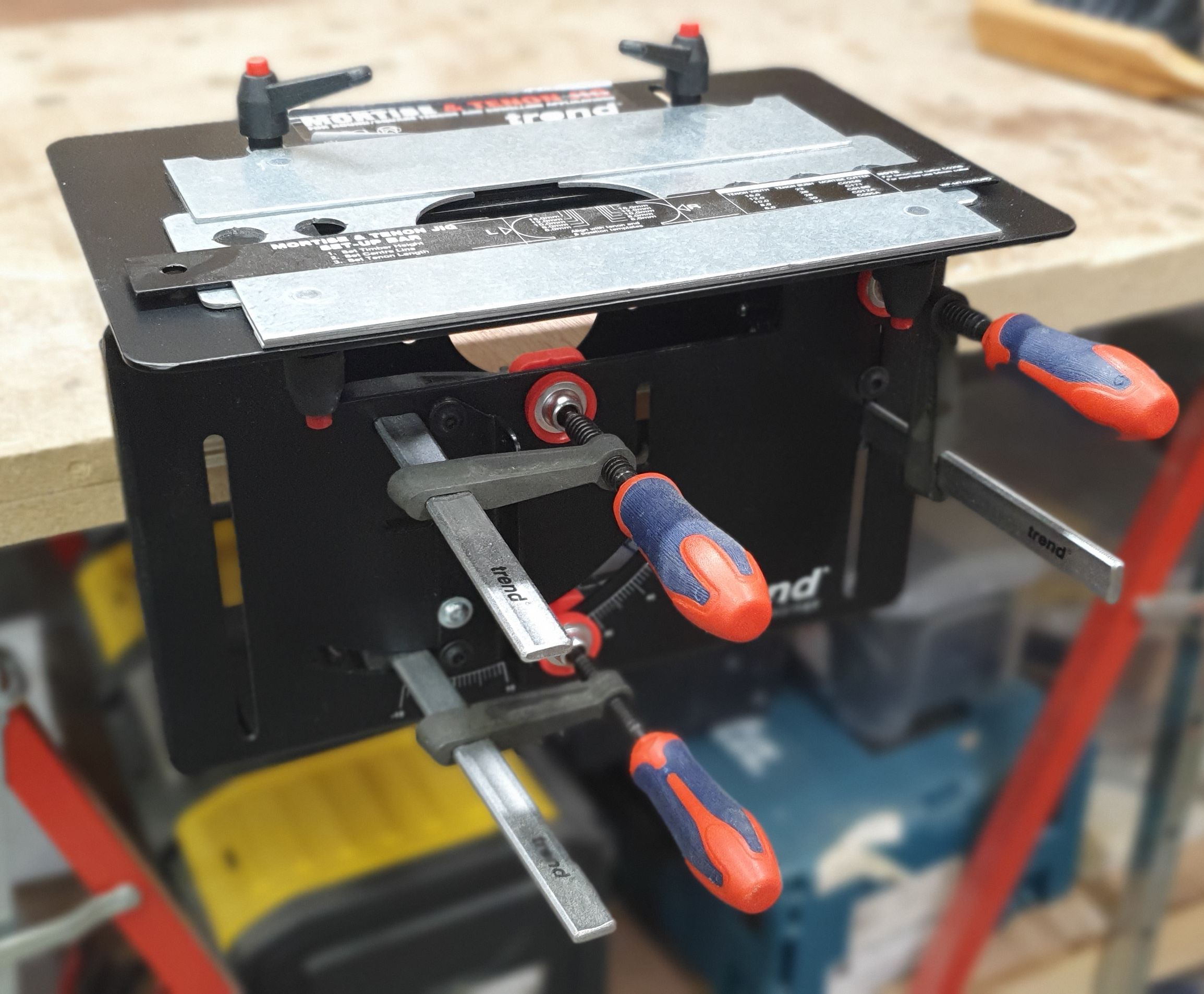

The third one is a Mortise and Tenon Jig Euro (Metric Size), enabling mortise & tenons and dowel joints to be cut with a router.
Ideal for cabinet, chair and table.
One set-up for both mortise and tenon giving perfectly fitting joints.
Fully adjustable for compound angle joints up to 45 degree.
Reversible templates to produce round and square end tenons.
Templates can be used for accurate dowelling applications.
Cuts mortise & tenon sizes of 6mm to 16mm.
Trend Router Jigs : Mortise & Tenon and dowel joints

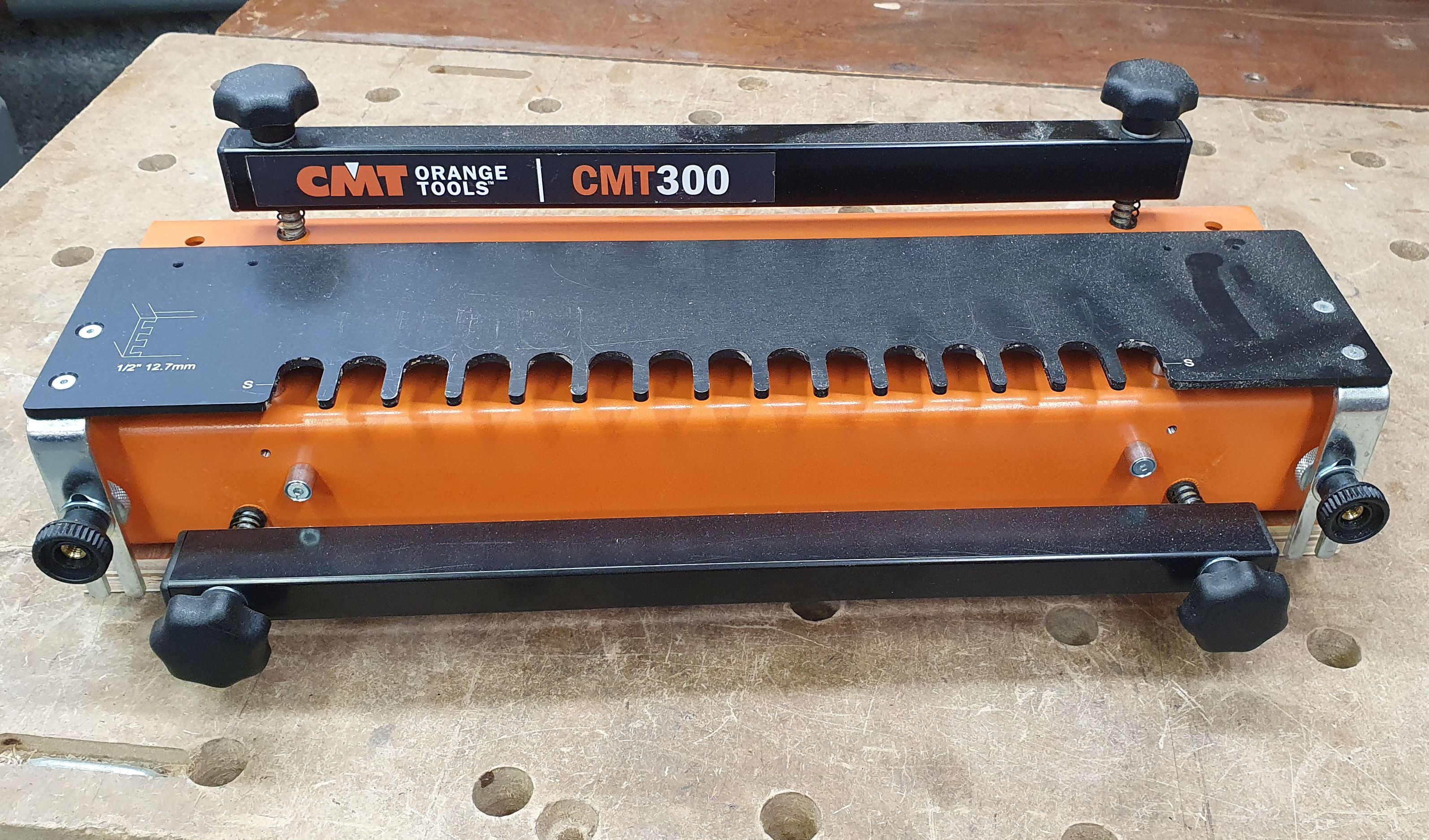

The fourth one is an universal interlocking Joint jig. It makes it possible to make dovetails, half-blind dovetails and finger joints according to the chosen template, guided bush and router bit.
